Extrusion Foam

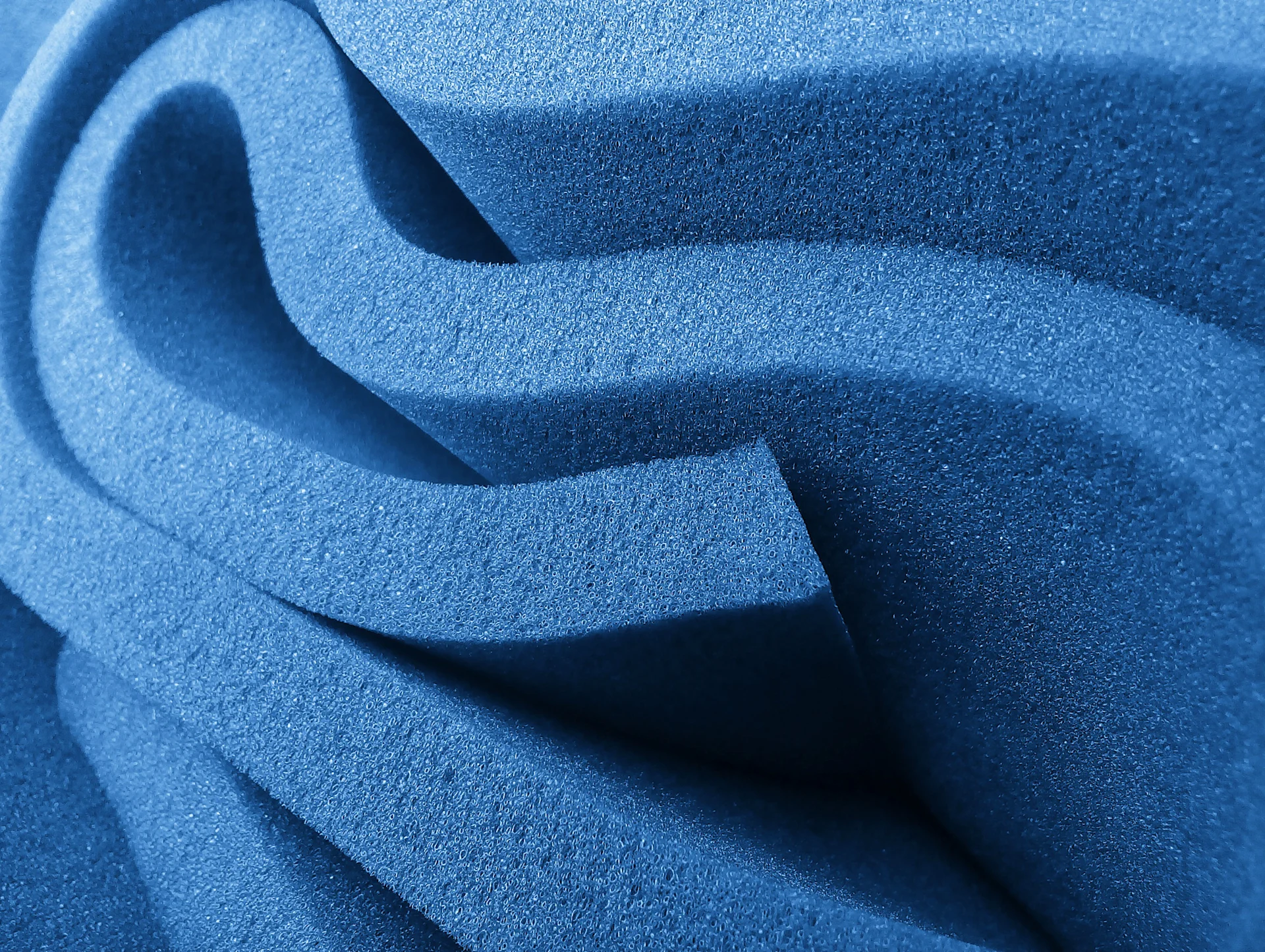

Foam extrusion is a sophisticated process designed for fabricating plastic sheets with a unique cellular structure.

Foam Extrusion Process:


  • Blowing Agent Integration: During melt preparation within the extruder barrel, a blowing agent—either gaseous or chemical—is introduced into the polymer melt.

  • Expansion: As the melt exits the die, it expands to a predetermined extent, creating the cellular structure within the wall of the plastic sheet.

  • Extrusion Machine: The process takes place in a specialized foam extrusion machine with a sealed extrusion chamber.

  • Pressure Variation: The chamber may experience variations in pressure, such as a vacuum, to shape the plastic.

  • Shape Control: Power-driven rolls within and downstream of the chamber ensure the plastic maintains the desired shape.



Operational Environment and Machinery Adjustments:


  • Harsh Conditions: The extrusion chamber environment is extreme, necessitating external power for forming or shaping rolls to mitigate exposure to damaging conditions like vacuum and pressure.

  • Drive System Positioning: Positioned externally, the drive system facilitates ongoing operations, maintenance, and adjustments without halting production.

  • Barometric Leg Chamber: The chamber is typically at the upper end of a barometric leg, through which the extrudate is passed.

  • Chamber Closure: Movable bulkheads are employed to seal the chamber's upper end, adjustable in both directions for operational flexibility.


The foam extrusion process is critical in producing lightweight, resilient plastic sheets used in a variety of applications, offering manufacturers the ability to create products with improved insulation properties and material efficiency.
