Informace o značce

Výrobci: EnvaliorSkupina polymerů: PASkupina/typ(y) polymerů: PA46

PA46 - Stanyl®

Stanyl® is a high-performance polyamide 4,6 (PA46) developed by Envalior and distributed by Resinex. This aliphatic polyamide is formed by the polycondensation of 1.4-diaminobutane and adipic acid, resulting in a unique structural symmetry that leads to high crystallinity. With a high melting temperature of 295°C, Stanyl® offers exceptional properties, including:

  • Excellent high-temperature mechanical performance
  • Superior wear and friction properties
  • Outstanding flow


Discover Stanyl®

The crystallinity of Stanyl® is the key to its unique properties. Its symmetrical polymer structure allows the polymers to fit in multiple ways, resulting in high crystallisation speeds and crystallinity. These properties give rise to excellent mechanical wear and friction performance at high temperatures. Stanyl® bridges the gap between conventional engineering plastics such as PA6, PA66, PBT, and PET, and exotic materials like LCP, PPS, and PEEK.

Why is PA46 Stanyl® Special?

Stanyl®'s higher number of amide groups per given chain length and its symmetrical chain structure result in a higher melting temperature of 295°C, higher crystallinity, and a faster rate of crystallisation. These characteristics explain its high toughness level, short cycle times, high stiffness above Tg, low level of creep above Tg, excellent fatigue properties, good heat resistance, and excellent abrasion resistance. The aliphatic structure also ensures good flow.

Benefits for Moulders and End Users:

  • Resistance to High Temperatures: Ensures durability in demanding applications.
  • Increased Productivity: Up to 30% productivity increase of moulding equipment.
  • Greater Design Freedom: Excellent mechanical properties and good mould-flow behaviour.
  • Economical Processing: Safe and convenient processing with water-heated moulds.
  • No Post-Treatment: Absence of flash eliminates the need for post-treatment.
  • No Retooling Necessary: Seamless transition from PA6, PA66, or polyesters.


Typical Applications:

  • Air Management: The Diablo portfolio was created to improve heat ageing performance versus standard heat-stabilised materials.

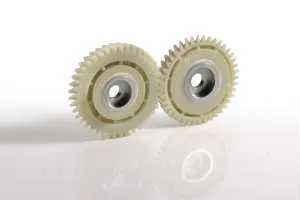

  • Gears, Valves, and Timing Chain Guides: A wide range of wear and friction grades are available.
  • Electronics: Ideal for connectors requiring superior weld line strength, high CTI, and high flow, promoting strong mechanical performance.


Stanyl Produkty

88 produkt(y) nalezen(y) na Stanyl
Stanyl TW441-FC
Stanyl TW441-FCEnvalior
PA Vstřikování, Vytlačování (nespecifikováno)
Lubricated
Viscosity, High
Heat Stabilized
+4
Stanyl TE373
Stanyl TE373Envalior
PA Vstřikování
Lubricated
Heat Stabilized
Wear Resistant
+6
Stanyl TW 272 B6
Stanyl TW 272 B6Envalior
PA | 30 Carbon FiberVstřikování
Lubricated
Heat Stabilized
Lubricated, PTFE
Stanyl TW241 B3
Stanyl TW241 B3Envalior
PA | 15 Carbon FiberVstřikování
Lubricated
Heat Stabilized
Stanyl TW 341-N
Stanyl TW 341-NEnvalior
PA Vstřikování
Lubricated
Platable
Heat Stabilized
+1
Stanyl TE 200 F6-FC BK27024
Stanyl TE 200 F6-FC BK27024Envalior
PA | 30 Glass FiberVstřikování
Food Contact Acceptable
Heat Stabilized
Stanyl TE 200 F6-FC
Stanyl TE 200 F6-FCEnvalior
PA | 30 Glass FiberVstřikování
Food Contact Acceptable
Platable
Heat Stabilized
Stanyl TW341-FC
Stanyl TW341-FCEnvalior
PA Vstřikování
Lubricated
Food Contact Acceptable
Heat Stabilized
...
...

K dispozici v

Turkey, Serbia, Sweden, Ukraine, Bulgaria, Greece, North Macedonia, Romania, Lithuania, Denmark, Slovenija, Bosnia and Herzegovina, Portugal, Switzerland, Germany, France, Croatia, Austria, Hungary, Spain, Czech Republic, United Kingdom, Poland, Italy, Ireland, Latvia, Netherlands, Norway, Slovakia, Belgium, Estonia, Luxembourg, Finland

Dokumenty

0
0 nalezených dokumentů
